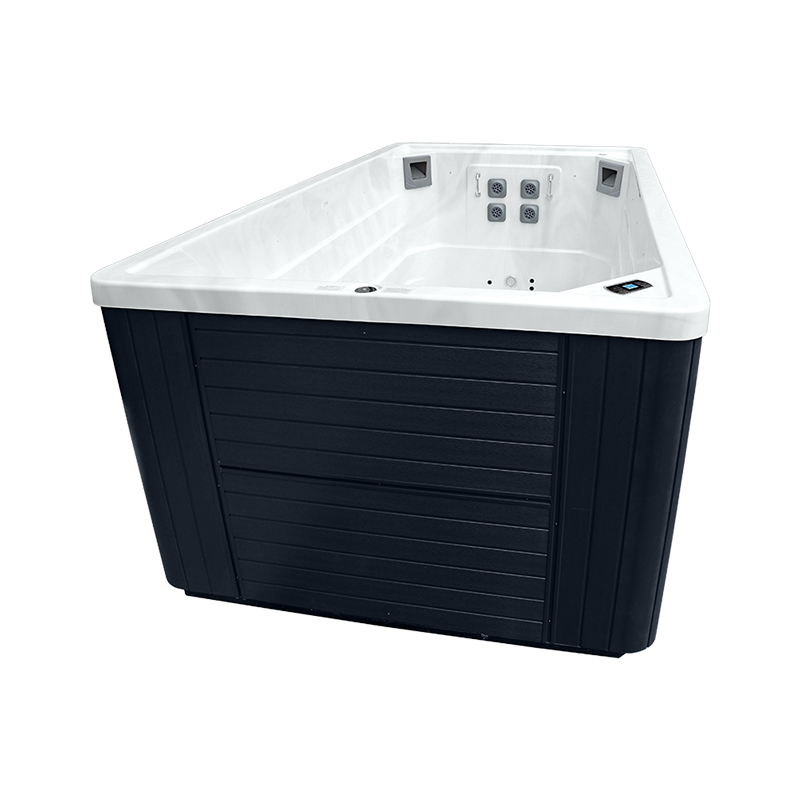

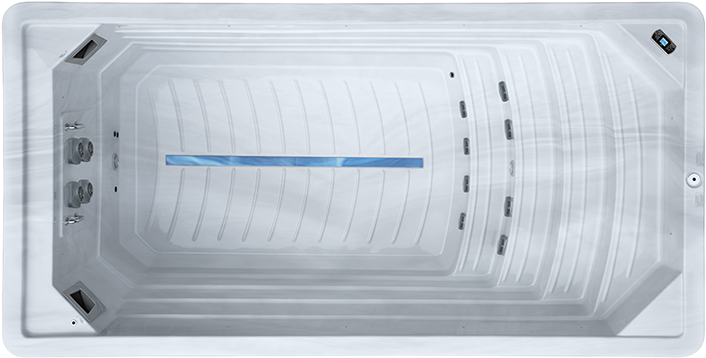

Atlantis 4.6 Elite Premium

The Atlantis 4.6 model allows you to enjoy the full benefits of the Riptide top end swimming system even when space on your patio or in your garden may be limited.

Product Details

The Atlantis have been designed as the ultimate swimming machines. The Pro models feature an incredibly effective 4 jets variable speed counter current system, with 4 powerful pumps.

If you are a competitive swimmer then you will be amazed at the swim experience in any of our Pro models.

The Atlantis are no normal exercise pools, the water is clear, with no air bubbles, and the flow so wide that you feel like you are swimming against the current of a strong river.

A dedicated exercise pool, it is perfect for every kind of swimmer, from beginner to competitive sports person.


Technical Specifications

Dimensions 4.6m x 2.35m x 1.54m (+/-15mm tolerance)
Swim System 4 Turbo counter current jets with a 10 speed variable speed drive, producing up to 2,860 gallons output per minute
Electrical Remove this line
Amps 41 amp, 230V – 50 Hz / 20 amp, 380V – 50 Hz, TÜV certified
Water Capacity 8800 litres
Dry Weight 1040kg
Shell Aristech shell in Sterling Silver, Ocean Wave or Pearl Shadow
Frame Galvinised Steel
Cabinet Options Maintenance free UV resistant synthetic wood in Dark Grey or Mocha
Cover Options Fully insulated heavy-duty humpback cover available in Grey or Coffee
Control System Gecko IN.YE5 Control system, IN.K806 bar top control
Heater 3kw Heater
Insulation Thermo Lock insulation system, plus reflective insulation boards fitted to all sides and floor, with airtight heat lock cabinet
Pump 2 x variable speed 3.5HP hydros massage pumps + 2 x 3HP one speed hydros massage pumps
Circulation Pump 1HP
Filtration Easy to clean in-spa filtration system, 2 x high-efficient Blue Filter
Ozone System High efficient mixed ozone sanitisation
Audio System


Transducer speaker music system with subwoofer and IN.STREAM blue tooth
For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system
Lighting Underwater LED lighting, Multi Point perimeter LED lighting system
Certificate of Approval CE, SAA

Optional Extras

Colour Matched Triple Steps

Single Stainless Steel Support Bar

Swim Pole system inc stainless steel base, fit during install

Roll Up Cover

4 Seasons Enclosure

Transducer speaker music system with sub woofer and IN.STREAM blue tooth

For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system


Atlantis Diagrams

Riptide Owners Manuals


View the Poseidon Swim Spa in action…


Available as an optional extra with all of our pools is a full Audio System.

This includes IN.Stream bluetooth module, transducer speaker system, and a subwoofer speaker built into the frame providing excellent sound.
