Atlantis 4.6 Hydro

The Atlantis 4.6 Hydro pool allows you to enjoy the full benefits of the Riptide top end swimming system even when space on your patio or in your garden may be limited.

Product Details

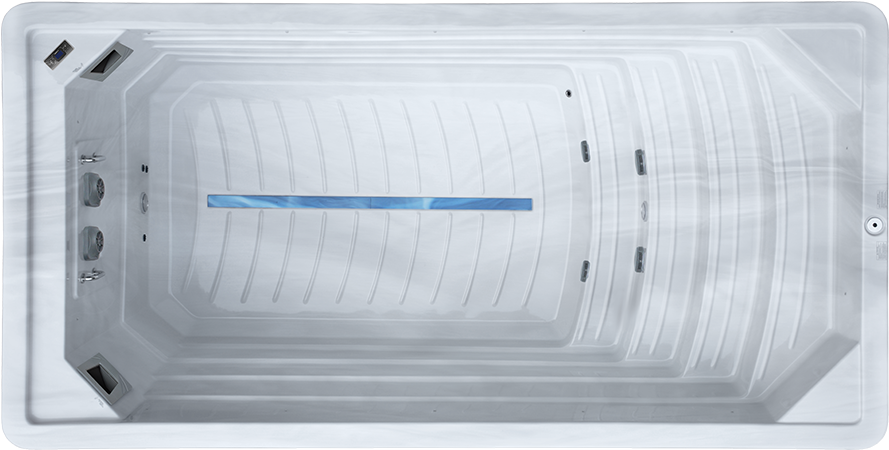

The Riptide Atlantis 4.6 Hydro Exercise Pool is a compact yet fully featured dedicated swimming machine.

The Atlantis 4.6 allows you to enjoy the full benefits of our top end swimming machines even when space may be limited.

Unlike our combined swim and spas, the Atlantis has no hot tub features whatsoever – this is a swimming pool focused specifically for fitness and training regimes.

A dedicated exercise pool, it is perfect for every kind of swimmer, from beginner to competitive sports person.


Technical Specifications

Dimensions 4.6m x 2.35m x 1.54m (+/-15mm tolerance)
Swim System 2 turbo counter-current jets producing 1320 gallons output per min
Amps 22 amp, 230V – 50 Hz / 15 amp, 380V – 50 Hz, TÜV certified
Water Capacity 8800 litres
Dry Weight 895kg
Shell Aristech shell in Sterling Silver, Ocean Wave or Pearl Shadow
Frame Galvinised Steel
Cabinet Options Maintenance free UV resistant synthetic wood in Dark Grey or Mocha
Cover Options Fully insulated heavy-duty humpback cover available in Grey or Coffee
Control System SPA TECH C-III(200) Control system, MP30 bar top control
Heater 3kw Heater
Insulation Power Saver insulation includes foam shell and cabinet with sealed air gap
Pump 2 x 3HP one speed hydro massage pumps
Filtration Easy to clean in-spa filtration system, 2 x high-efficient Blue Filter
Circulation Pump 1HP
Ozone System High efficient mixed ozone sanitisation
Audio System (optional) Transducer speaker music system with subwoofer and IN.STREAM blue tooth
For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system
Lighting Underwater LED lighting, Multi Point perimeter LED lighting system
Certificate of Approval CE, SAA

Optional Extras

Colour Matched Triple Steps

Single Stainless Steel Support Bar

Swim Pole system inc stainless steel base, fit during install

Roll Up Cover

4 Seasons Enclosure

Transducer speaker music system with sub woofer and IN.STREAM blue tooth

For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system


Atlantis Diagrams

Riptide Owners Manuals


View the Poseidon Swim Spa in action…


Available as an optional extra with all of our pools is a full Audio System.

This includes IN.Stream bluetooth module, transducer speaker system, and a subwoofer speaker built into the frame providing excellent sound.
