Atlantis 4.6

The Riptide Atlantis 4.6 Exercise Pool is a compact yet fully featured dedicated swimming machine.

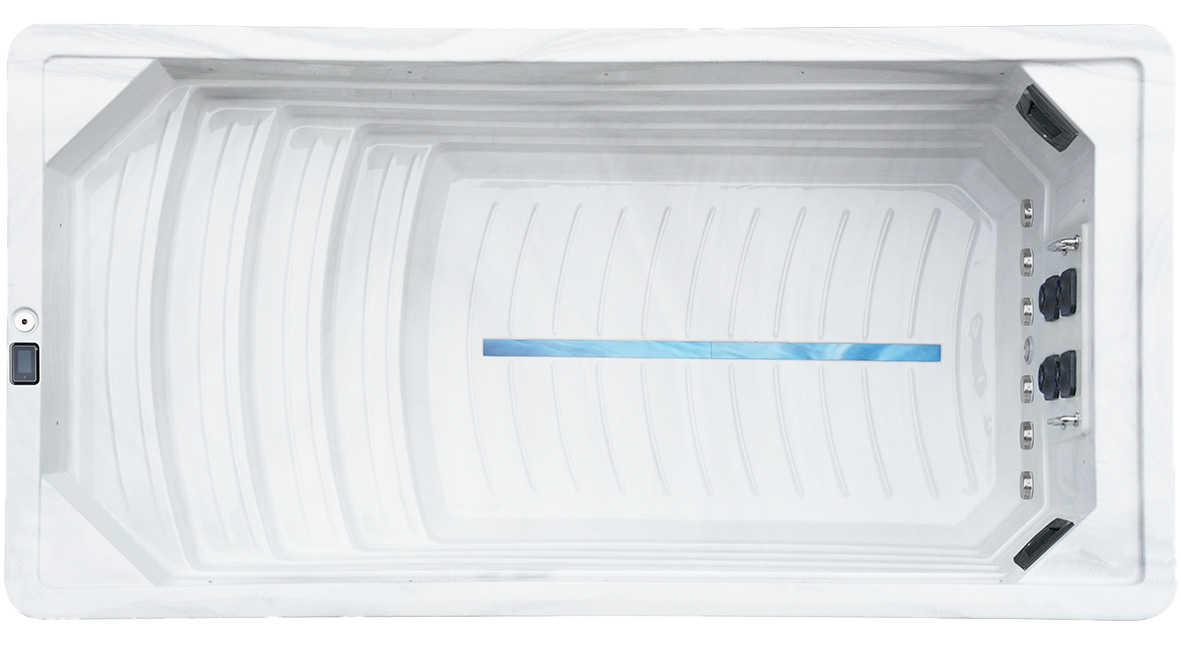

atlantis pool from above

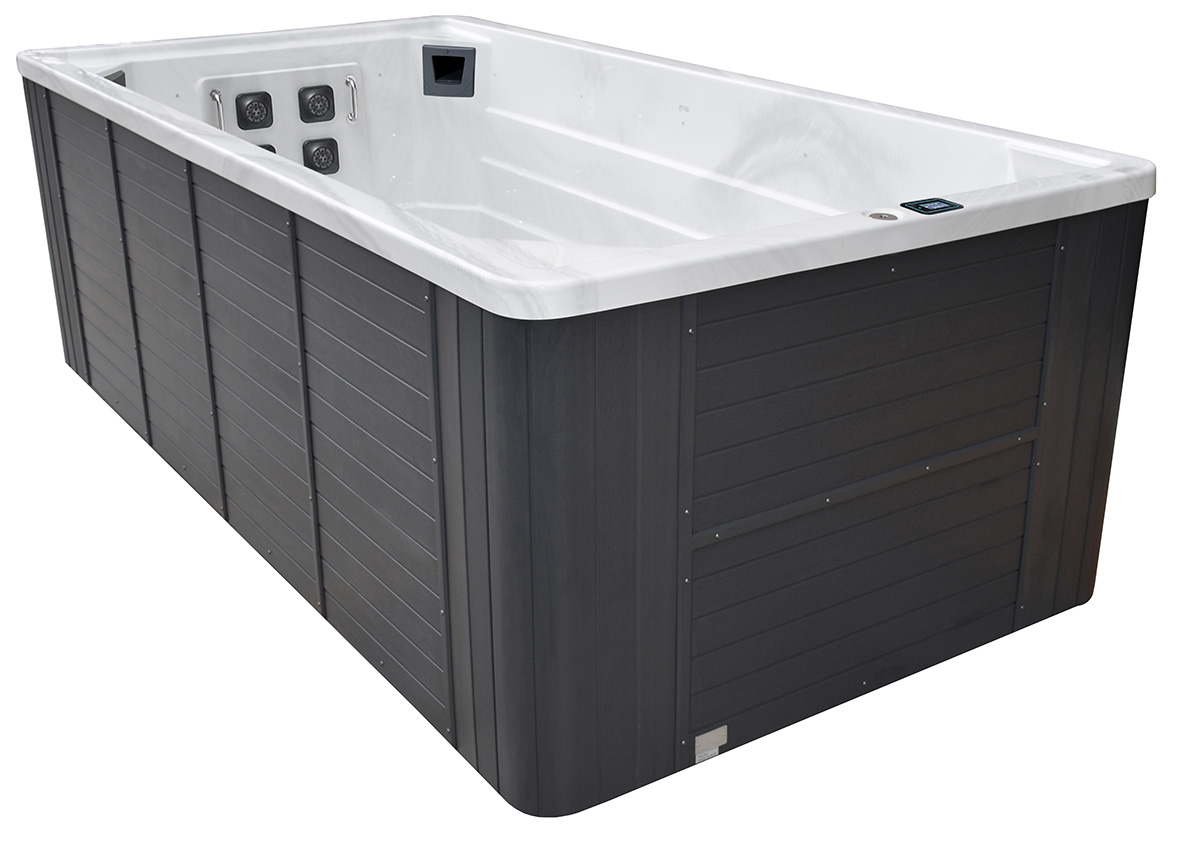

atlantis 4.6

Product Details

The Riptide Atlantis 4.6 Exercise Pool is a compact yet fully featured dedicated swimming machine.

The smaller of our two full-on exercise pools, the Atlantis 4.6 allows you to enjoy the full benefits of our top end swimming machines even when space may be limited. The Atlantis is designed to allow room for both adults and children to swim as vigorously as they choose using the control panel to adjust the power of the counter-current.

Unlike our combined swim and spas, the Atlantis has no hot tub features whatsoever – this is a swimming pool focused specifically for fitness and training regimes.

Gallery

Technical Specifications

Dimensions 4.6m x 2.35m x 1.52m(+/-15mm tolerance)
Swim System 4 turbo counter-current jets producing 2200 gallons output per min
Electrical 230V/380V-50HZ TUV certified
Amps 45 amp
Water Capacity 8800 litres
Dry Weight 965kg
Shell Silver White Marble,Ocean Wave or Midnight Opal
Frame Galvinised Steel
Cabinet Options Maintenance free UV resistant synthetic wood in Coffee or Grey
Cover Options Fully insulated heavy-duty humpback cover available in Grey or Coffee
Control System Integrated Gecko programmable IN.YE5 control system
Heater 3kw Heater
Insulation 100mm 2lb closed cell foam, plus reflective insulation boards fitted to all sides and floor, with airtight heat lock cabinet
Pump 2x one speed 3HP hydros massage pumps + 2 x one speed 2HP hydros massage pumps
Filtration 2 x 25 sq ft filtration, top loading cartridges
Circulation Pump 1HP
Ozone System Corona Discharge Ozone system
Audio System (optional) Transducer speaker music system with subwoofer and IN.STREAM blue tooth
For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system
Lighting Underwater LED lighting, Multi Point perimeter LED lighting system

Optional Extras

Colour Matched Triple Steps

Single Stainless Steel Support Bar

Swim Pole system inc stainless steel base, fit during install

Roll Up Cover

4 Seasons Enclosure

Transducer speaker music system with sub woofer and IN.STREAM blue tooth

For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system



Warranty

8 year limited Warranty



Downloads

Atlantis Installation Instructions

Atlantis 4.6 Diagrams

Riptide Owners Manuals

Riptide Limited Warranty



View the Poseidon Swim Spa in action…

AUDIO SYSTEMS

Available as an optional extra with all of our pools is a full Audio System.

This includes IN.Stream bluetooth module, transducer speaker system, and a subwoofer speaker built into the frame providing excellent sound.

hot tubs & spas accessories

COVER SYSTEMS

There are a range of covers available for your Riptide Product as well as many different cover lifters and devices to help you remove and replace your cover with ease.

hot tub with foldaway cover

Riptide Swim Spas are available in dealerships worldwide find a dealer
