Nautilus In Ground

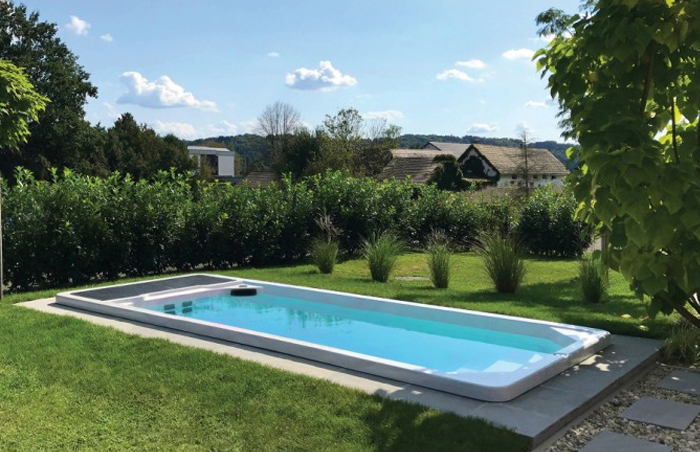

Specifically designed for in ground installation, experience a perfect combination of power and beauty in the Nautilus In Ground exercise pool.

Product Details

Designed for sinking into in your garden, building or patio,the Nautilus In Ground is supplied with a watertight sturdy fibre glass outer shell and with all working parts, electronics and power supply at the jet end. Requiring just a concrete base with no need for below ground side access, it is quick and easy to install and drastically reduces installation costs.

For competitive swimmers through to family play, the Nautilus In Ground has a huge pool area with a superior depth and width offering a smooth, turbulence-free swimming experience. Power is provided by six counter current jets generating a force of up to 2,200 gallons per minute of water output.

With an ultra efficient heating, filtration and corona discharge ozone system, the water is always warm, crystal clear and ready for a swim anytime.

The Nautilus In Ground makes installation a doddle with an innovative service hatch for easy access of working parts for maintenance.
The service hatch allows for the pool to be installed into a rectangular pit and then back filled, saving thousands of pounds on traditional in ground installation costs.


Technical Specifications


Dimensions 5850mm × 2350mm × 1520mm
Water Capacity 9,900 litres
Power Supply 45 amp
Shell Aristech shell in Sterling White Marble, Ocean Wave, Pearl Shadow
Cabinet Maintenance free UV resistant synthetic wood in Coffee or Coastal Grey
Cover Fully insulated, heavy-duty humpback or roll up thermal cover in choice of coffee or grey vinyl
Weight Dry 1,299kg
Control System Integrated Gecko programmable control system for circulation & filtration
Heater 3kw heater
Insulation 100mm 2lb closed cell foam, plus reflective insulation boards fitted to all sides and floor, with airtight heat lock cabinet
Jets 6 counter current jets producing up to 2,200 gallons output per minute
Lighting Underwater, multi point perimeter and bar top LED lighting system
Pump 10 speed variable speed drive: 2 x 3.5hp variable speed pumps, 2 x 3hp one speed pumps
Circulation Pump dedicated 1hp circulation pump
Filtration 2x 35 sq ft filtration with top loading cartridges
Ozone System Corona discharge ozone system
Audio System Transducer speaker music system with sub woofer and IN.STREAM blue tooth (optional £1099)
Optional Extras For complete control from anywhere in the world add the IN.TOUCH 2 remote Wifi communication system (optional £395)
Colour Matched Triple Steps £300
Single Stainless Steel Support Bar £125
Super Swim Pro Swimrod system inc stainless steel base
Warranty 8 Year Limited Warranty

Optional Extras

Colour Matched Steps

Single Stainless Steel Support Bar

Cover lifter

4 Seasons Enclosure

In.Stream bluetooth transducer music system

For complete pool control from anywhere in the world add the IN.TOUCH remote wifi communication system



8 year limited Warranty



Nautilus Pro In Ground Installation in 5 steps

Nautilus Pro In Ground Installation Instructions

Nautilus Pro In Ground Diagrams

Riptide Owners Manuals

Riptide Limited Warranty

View the Poseidon Swim Spa in action…


Available as an optional extra with all of our pools is a full Audio System.

This includes IN.Stream bluetooth module, transducer speaker system, and a subwoofer speaker built into the frame providing excellent sound.
