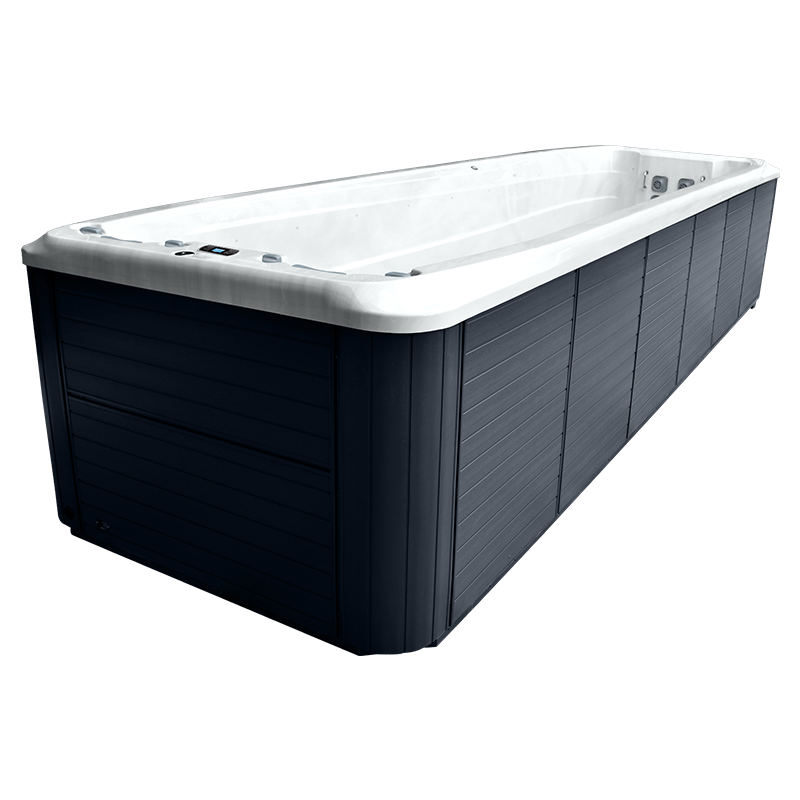

Athena 8.0 DUO Elite Premium

ACRYLIC COLOURS

CABINET COLOURS

Athena 8.0 DUO Elite Premium Product Details

For swimming in the pool end, adjust the water temperature so as not to overheat during exercise. On the other side of the thermal wall the fully featured hot tub can be run at much higher temperature to enable your body to relax, benefiting your circulation and tired muscles.

The pool end is fitted with an ultra powerful 4 turbo jet system with a varrible speed drive. Adjust the water speed to match different swim styles and swimmer abilities.

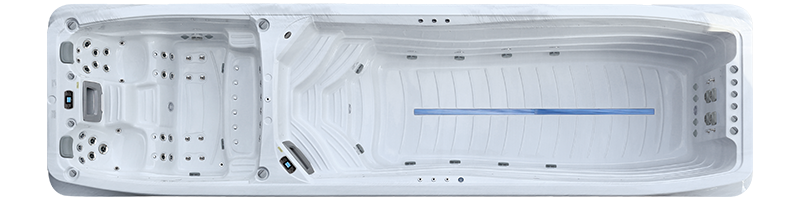

The hot tub end of the Athena 8.0 DUO Elite Premium features 46 adjustable hydromassage jets and 10 air massage jets across three seats and two full length loungers.

Image may show optional extras

MASSAGE
ENERGY
WATER
CONTROL
JETS
SWIMMING

A BETTER MASSAGE EVERY TIME

Each stainless steel hydrotherapy jet is positioned perfectly to loosen the tightest knots in your neck and shoulders, lower back, legs and feet.

Tough PVC and stainless steel structure can offer a smoother, more enjoyable massage
· Every seat offers a different massage experience.
· Jets targeted to specific muscle groups for maximum benefit.

Overall Thermal Lock Insulation Power Saving System

More heat can be locked without frequent heating. With a combination of lockable thermo cover with high density insulating foam, “No Gap” cabinet, thick foam, insulated cladding plus high-performance insulation material, well-sealed floor. Riptide spas insulation system ensures minimal heat loss.

ENHANCE EASY WATER CARE SYSTEM

Safe and clear water is essential to your soaking or swimming experience.Enhance easy water care system make safety and water cleaning easy and low cost. It includes high efficiency filter cartridge,high-efficient mixed ozone sterilisation, high flow and quiet circulation pump，helping to Kill Germs and break down body oils for reduced chemical usage and crystal clear water

SMART POWER SAVER CONTROLLER

Gecko controllers use state of the art technology to manage power use and reduce overall running costs.

With its bright, full colour display and the high resolution of its screen, in.k806 main keypad provides an intuitive user experience and brings the spa user interface to a new level. Loaded with a large amount of memory and a powerful on-board processor, in.k806 offers a complete control on all spa functions and connected value-added accessories.

Patented turbo Swim Jets

Correct jet positioning and resistance is crucial.fter years of development and testing, our turbo swim jets have a smooth continuous flow, with the resistance required to provide an unparalleled swimming experience.

Adaptive Flow Control Inverter Swim System

Inverter swim system offering 10 speed variants for differing swimming styles and abilities. Providing a powerful and fully adjustable yet no-turbulence swim current that will challenge even the strongest swimmer, great for exercise and fun for the whole family

TECHNICAL SPECIFICATIONS

BASIC INFORMATION	Athena 8.0 Duo Elite Luxury	Athena 8.0 Duo Elite Premium
DIMENSION(MM)	8,000 X 2,250 X 1,540	8,000 X 2,250 X 1,540
PRODUCT LAYOUT	2 loungers	2 loungers
EMPTY WEIGHT(KG)	1,840	1,890
WATER CAPACITY(L)	10,560	10,560
FRAME	Galvanized Steel Frame	Galvanized Steel Frame
BASE	Plastic Base	Plastic Base
CABINET	PS Cabinet	PS Cabinet
MASSAGE&SWIMMING SYSTEM
CONTROL SYSTEM(SPA ZONE)	Gecko IN.YE5+IN.K806	Gecko IN.YE5+IN.K806
CONTROL SYSTEM(SWIMA ZONE)	Gecko IN.YE5+IN.K806+IN.K120	Gecko IN.YE5+IN.K806+IN.K120
HYDROTHERAPY JETS	46	46
AIR MASSAGE JETS	10	10
SWIMMING JET	River jets x 4	3"Turbo jets x 4
MASSAGE PUMP	2 x 3hp	2 x 3hp
SWIM ZONE PUMPS	2 x 4hp+1 x 3hp+ 1 x 2hp	2 x 3.5(Inverter) hp + 2 x 3hp
AIR PUMP	400W Preheated blower	400W Preheated blower
INVERTER SYSTEM	–	Included
SWIM POLE BASE	Included	Included
STAINLESS STEEL HANDRAIL	Included	Included
WATER CARE SYSTEM
CIRCULATION PUMP	Quiet circulation pump	Quiet circulation pump
SANITIZER SYSTEM	High-efficient mixed ozone sterilisation	High-efficient mixed ozone sterilisation
FILTRATION SYSTEM	Dual High-efficient blue filter	Dual High-efficient blue filter
INSULATION SYSTEM
THERMO LOCK SYSTEM	Overall thermal lock insulation system	Overall thermal lock insulation system
THERMAL COVER	Luxury	Luxury
HEAT PUMP CONNECTION	Yes	Yes
HEATER	3KW	3KW
FEATURES
BACKLIT CONTROLS	Included	Included
PERIMETER LED	Included	Included
6"WATERFALL	Included	Included
2"CASCADE	Included	Included
2.5" FOUNTAIN	Included	Included
POWER SUPPLY	41Amp	41Amp
OPTIONAL EXRTAS
*WIFI/BLUETOOTH STEREO/FULL INSULATION/HEAT PUMP Product specifications are subject to change without notice to improve reliability，function，design or otherwise.**

STRUCTURE

WEATHERPROOF CABINET

The weatherproof and maintenance free UV resistant exterior wood-effect cabinet with stainless steel fittings is colour matched to the heavy-duty vinyl thermal cover.
