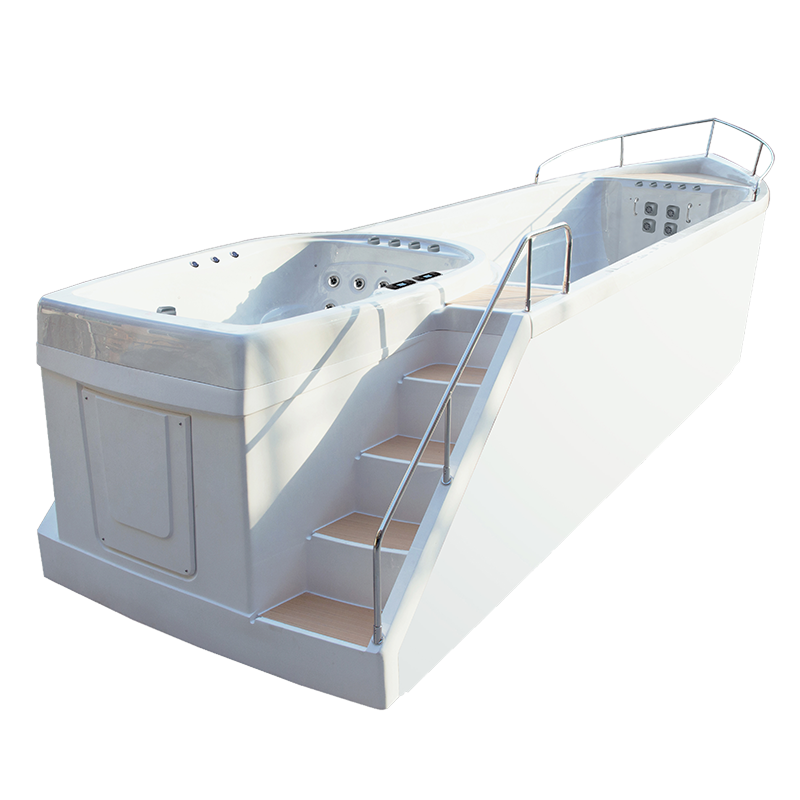

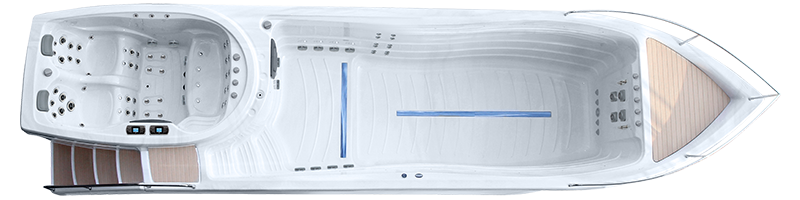

Athena 9.0 DUO Elite Luxury

Athena 9.0 DUO Elite Luxury is the most prestigious combination pool in swim spa range and is unique as the worlds only swim spa in the graceful style of a 30ft yacht.

Product Details

Athena 9.0 DUO Elite Luxury is designed to allow the hot tub and pool to be set at different tempatures. For swimming you need cooler water to avoid over heating during exercise. Located at the stern of the Athena 9.0 DUO Elite Luxury the Hot tub can be run at a much higher temperature to aid circulation and sooth tight, tired muscles.

For total relaxation, the Athena 9.0 DUO Elite Luxury’s fully featured hot tub has an array of adjustable hydro-massage jets across two seats and two full length loungers.

Elegant shipstyle steps lead you up into the large, wide exercise pool for competitive swimming and family fun.

Gallery

Technical Specifications

Capacity 2 seats, 2 loungers
Dimensions 9m × 2.25m × 2.02m
Water Capacity 12,000 Litres
Power Supply Spa end: 25 amp, 230V – 50 Hz / 14 amp, 380V – 50 Hz, TÜV certified
Pool end: 41 amp, 230V – 50 Hz / 16 amp, 380V – 50 Hz, TÜV certified
Shell Aristech shell in Sterling Silver, Ocean Wave or Pearl Shadow
Cabinet Aluminum
Weight Dry
2070kg
Control System Fully integrated Gecko YE5 programmable control system for circulation & filtration
Control Panel Spa end: Gecko IN.K806 bar top control
Pool end: Gecko IN.K806+IN.K120 bar top control
Heater 2 x 3kw heater
Insulation Platinum insulation includes foam shell and cabinet with sealed air gap
Jets 4 Turbo counter current jets producing up to 2,200 gallons output per minute, 56 Diamond hydrotherapy jets with stainless steel escutcheons, 8 air massage jets
Lighting Underwater LED lighting, multi point perimeter & bar top LED lighting system
Pump Spa end: 2 x 3hp one speed pumps
Pool end: 2 x 3hp one speed pumps, 2 x 2hp one speed pumps
Circulation Pump Dedicated 0.25HP (spa end) and 1HP (pool end) circulation pump
Filtration Easy to clean in-spa filtration system, 2 x dual high-efficient Blue Filter System
Ozone System High efficient mixed ozone sanitisation
Optional Extras Cover lifter, in.Stream bluetooth transducer music system, in.Touch remote communication system, colour matched steps
Certificate of Approval CE, SAA

Optional Extras

Cover lifter

In.Stream bluetooth transducer music system

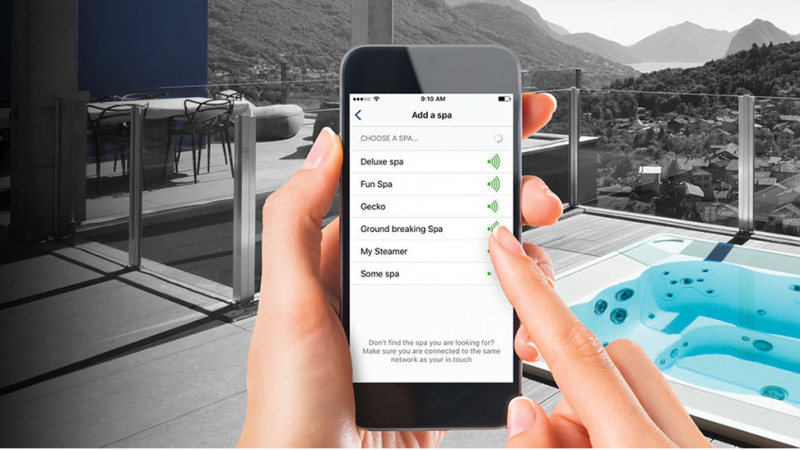

In.Touch remote communication system

Colour matched steps



Downloads

Athena Diagrams

Riptide Owners Manuals

View the Poseidon Swim Spa in action…

AUDIO SYSTEMS

Available as an optional extra with all of our pools is a full Audio System.

This includes IN.Stream bluetooth module, transducer speaker system, and a subwoofer speaker built into the frame providing excellent sound.

hot tubs & spas accessories

COVER SYSTEMS

There are a range of covers available for your Riptide Product as well as many different cover lifters and devices to help you remove and replace your cover with ease.

hot tub with foldaway cover
