Athena 9.0 DUO Elite Premium

CABINET COLOURS

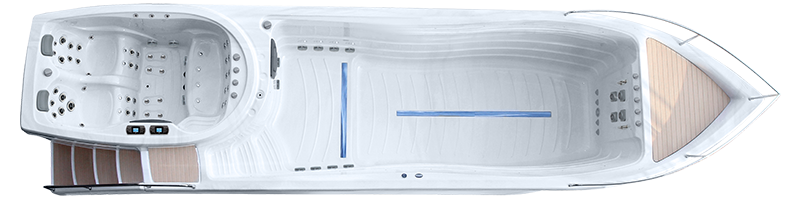

Athena 9.0 DUO Elite Premium Product Details

The Athena 9.0 DUO Elite Premium is designed to allow the hot tub and pool to be set at different tempatures. For swimming you need cooler water to avoid over heating during exercise. Located at the stern of the Athena 9.0 DUO Elite Premium the Hot tub can be run at a much higher temperature to aid circulation and sooth tight, tired muscles.

The pool end features Riptide’s powerful four turbo jet system with a 10 speed varrible speed drive. Adjust the water speed to match different swim styles and swimmer abilities.

For total relaxation, the Athena 9.0 DUO Elite Premium’s fully featured hot tub has an array of adjustable hydro-massage jets across two seats and two full length loungers.

Elegant shipstyle steps lead you up into the large, wide exercise pool for competitive swimming and family fun.

Image may show optional extras

A BETTER MASSAGE EVERY TIME

Each stainless steel hydrotherapy jet is positioned perfectly to loosen the tightest knots in your neck and shoulders, lower back, legs and feet.

Tough PVC and stainless steel structure can offer a smoother, more enjoyable massage
· Every seat offers a different massage experience.
· Jets targeted to specific muscle groups for maximum benefit.

Platinum Lock Insulation Power Saving System

More heat can be locked without frequent heating. With a combination of lockable thermo cover with high density insulating foam, “No Gap” cabinet, thick foam, insulated cladding plus high-performance insulation material, well-sealed floor. Riptide spas insulation system ensures minimal heat loss.

ENHANCE EASY WATER CARE SYSTEM

Safe and clear water is essential to your soaking or swimming experience.Enhance easy water care system make safety and water cleaning easy and low cost. It includes high efficiency filter cartridge,high-efficient mixed ozone sterilisation, high flow and quiet circulation pump,helping to Kill Germs and break down body oils for reduced chemical usage and crystal clear water

SMART POWER SAVER CONTROLLER

Gecko controllers use state of the art technology to manage power use and reduce overall running costs.

With its bright, full colour display and the high resolution of its screen, in.k806 main keypad provides an intuitive user experience and brings the spa user interface to a new level. Loaded with a large amount of memory and a powerful on-board processor, in.k806 offers a complete control on all spa functions and connected value-added accessories.

Patented turbo Swim Jets

Correct jet positioning and resistance is crucial.fter years of development and testing, our turbo swim jets have a smooth continuous flow, with the resistance required to provide an unparalleled swimming experience.

Adaptive Flow Control Inverter Swim System

Inverter swim system offering 10 speed variants for differing swimming styles and abilities. Providing a powerful and fully adjustable yet no-turbulence swim current that will challenge even the strongest swimmer, great for exercise and fun for the whole family

TECHNICAL SPECIFICATIONS

BASIC INFORMATION

Athena 9.0 Duo Elite Luxury

Athena 9.0 Duo Elite Premium

DIMENSION(MM)

9,000 X 2,250 X 2,020

9,000 X 2,250 X 2,020

PRODUCT LAYOUT

2 loungers

2 loungers

EMPTY WEIGHT(KG)

2,070

2,120

WATER CAPACITY(L)

12,000

12,000

FRAME

Galvanized Steel Frame

Galvanized Steel Frame

BASE

Plastic Base

Plastic Base

CABINET

Aluminum Cabinet

Aluminum Cabinet

MASSAGE&SWIMMING SYSTEM

CONTROL SYSTEM(SPA ZONE)

Gecko IN.YE5+IN.K806

Gecko IN.YE5+IN.K806

CONTROL SYSTEM(SWIMA ZONE)

Gecko IN.YE5+IN.K806+IN.K120

Gecko IN.YE5+IN.K806+IN.K120

HYDROTHERAPY JETS

56

56

AIR MASSAGE JETS

8

8

SWIMMING JET

3"Turbo jets x 4

3"Turbo jets x 4

MASSAGE PUMP

2 x 3hp

2 x 3hp

SWIM ZONE PUMPS

2 x 3hp+2 x 2hp

2 x 3.5(Inverter) hp + 2 x 3hp

AIR PUMP

400W Preheated blower

400W Preheated blower

INVERTER SYSTEM

Included

SWIM POLE BASE

Included

Included

STAINLESS STEEL HANDRAIL

Included

Included

WATER CARE SYSTEM

CIRCULATION PUMP

Quiet circulation pump

Quiet circulation pump

SANITIZER SYSTEM

High-efficient mixed ozone sterilisation

High-efficient mixed ozone sterilisation

FILTRATION SYSTEM

Dual High-efficient blue filter

Dual High-efficient blue filter

INSULATION SYSTEM

THERMO LOCK SYSTEM

Platinum lock insulation system

Platinum lock insulation system

THERMAL COVER

Luxury

Luxury

HEAT PUMP CONNECTION

Yes

Yes

HEATER

3KW

3KW

FEATURES

BACKLIT CONTROLS

Included

Included

PERIMETER LED

Included

Included

6"WATERFALL

Included

Included

2"CASCADE

Included

Included

2.5" FOUNTAIN

Included

Included

POWER SUPPLY

41Amp

41Amp

OPTIONAL EXRTAS

WIFI/BLUETOOTH STEREO/FULL INSULATION/*HEAT PUMP

Product specifications are subject to change without notice to improve reliability,function,design or otherwise.

STRUCTURE

WEATHERPROOF CABINET

The weatherproof and maintenance free UV resistant exterior wood-effect cabinet with stainless steel fittings is colour matched to the heavy-duty vinyl thermal cover.





THE THICKEST SHELL ON THE MARKET

8-10mm thick fibreglass shell with American  acrylic surface .

Multi layers laminated construction for strength and rigidity

Oven cured for maximum strength

SUPER TOUGH CONSTRUCTION THROUGHOUT

Super strong triple reinforced frame is screwed to the top edge & footwell

The frame also supports every seat

Built tough – swim spa are up to 50% heavier than other brands

SOLID ABS BASE

Solid wrap-around abs base on the bottom of your swim spa adds massive strength to the swim spa overall

Keeps pests and weather from damaging the frame and equipment



HUMAN-CENTERED DESIGN

INTELLIGENT AUTOMATIC DESIGN

Our “set and forget” multi function control system automatically makes sure your spas water is always clean and ready to use.

ERGONOMIC SEATING DESIGN

Made to Suit Every Body.

Choose between bench seating, contoured seating, neck therapy seating and recliner lounges in various depths to suit your mood and body size



SWIM LINE

The contrasting swim line provides a point of reference which helps to maintain a central position in the broad swim stream.





LUXURY HARD COVER

Perfect heat insulation & Energy saving

Manufactured with the highest quality commercial grade materials, providing a strong, durable, lockable safety cover.

 OPTIONAL ACCESSORIES

图层 0

HEAT PUMP

Ready to connect to your pool, this energy efficient alternative can save you up to 75% on heating costs.

Steps

Give your Pool better access with a durable step.Colour matchable 3 tier steps.Designed to be easy to assemble.Lightweight and super-sturdy.

微信图片_20220419173955

IN.STREAM STEREO

Delivering clean, crisp sound expected by music lovers, in.stream features a Class D amplifier technology to enhance your outdoor audio experience.

微信图片_20220419174000

IN.TOUCH WIFI

Unlock remote access with android, iphone, ipod or ipad via wi-fi for full spa control from anywhere.
