Atlantis 6.0 Hydro Pool

CABINET COLOURS

Atlantis 6.0 Hydro Pool Product Details

Our exercise pools are perfect for swimming, water workouts, rehabilitating, or just relaxing and having fun – all year round. Get healthy in the convenience and privacy of your own backyard.



Image may show optional extras

Extra Deep Design

Inside depth in each Extra Deep series Pool is 1.45m, to better cater for your swimming and exercise needs.

Patented Turbo Swim Jets

The Turbo Swim Jet has smooth continuous flow with the resistance required to provide an unparalleled swimming experience. Combining our superior inverter system offering 10 various speeds for different swimmer, from gentle to challenge, Riptide Swim Spas has created the very best swim experience available.

Skirt Lock Insulation Power Saving System

More heat can be locked without frequent heating. With a combination of lockable thermo cover with high density insulating foam, “No Gap” cabinet, thick foam, insulated cladding plus high-performance insulation material, well-sealed floor. Riptide spas insulation system ensures minimal heat loss.

Water Care System

4 layers water purification system.With high performance circulation pumps, a discharge ozone system and a skimmer filtration system, you can always be sure of a clean and safe pool experience in Riptide swim spas. All our spa components are designed for easy maintenance with our Easy Care Technology, so regular maintenance is easier and cheaper.

TECHNICAL SPECIFICATIONS

BASIC INFORMATION

6.0M PLUNGE

6.0M HYDRO

6.0M PRO LUXURY

6.0M PRO PREMIUM

DIMENSION(MM)

5,900 x 2,350 x 1,540

5,900 x 2,350 x 1,540

5,900 x 2,350 x 1,540

5,900 x 2,350 x 1,540

EMPTY WEIGHT(KG)

1180

1,240

1270

1280

WATER CAPACITY(L)

11,020

11,020

11,020

11,020

FRAME

Galvanized steel frame

Galvanized Steel Frame

Galvanized Steel Frame

Galvanized steel frame

BASE

Weatherproof plastic base

Weatherproof plastic base

Weatherproof plastic base

Weatherproof plastic base

CABINET

PS Cabinet/ Metal Corner

PS Cabinet/ Metal Corner

PS Cabinet/ Metal Corner

PS Cabinet/ Metal Corner

PUMPS

SWIM JET PUMPS

-

2 x 3hp

3 x 3hp

2 x 3.5hp (variable speed)
+ 1 x 3hp

FILTRATION PUMP

1 x 1hp

1 x 1hp

1 x 1hp

1 x 1hp

JETS

TURBO SWIM JETS

2

4

4

FILTRATION & SANITISATION

FILTRATION

100sqft

100sqft

100sqft

100sqft

SANITISATION

High-efficient mixed ozone sterilisation

High-efficient mixed ozone sterilisation

High-efficient mixed ozone sterilisation

High-efficient mixed ozone sterilisation

CONTROLS

CONTROLLER

Spa Tech C-III(200)+MP30

Spa Tech C-III(200)+MP30

Gecko IN.YE3 (extension connector)+IN.K1001

Gecko IN.YE3+IN.K806

HEATER

3KW Stainless steel

3KW Stainless steel

3KW Stainless steel

3KW Stainless steel

FEATURES

INSULATION

Skirt Lock Insulation

Skirt Lock Insulation

Overall Thermal Lock

Overall Thermal Lock

LIGHTING

Perimeter LED

Perimeter LED

Perimeter LED

Perimeter LED

BACK-LIT CONTROLS

Included

Included

Included

LOCKABLE HARDCOVER

Included

Included

Included

Included

HAND RAIL

Included

Included

Included

Included

POWER SUPPLY

220V ~ 240V – 50 Hz:
15 amp;
380V – 50 Hz:
15 amp

220V~240V – 50 Hz:
22 amp;
/ 380V – 50 Hz:
15 amp

220V~240V – 50 Hz:
31 amp;
/ 380V – 50 Hz:
13 amp

220V~240V – 50 Hz:
31 amp;
/ 380V – 50 Hz:
20 amp

OPTIONAL EXRTAS

FULL INSULATION | STEPS | HEAT PUMP CONNECTION | SWIM POLE | COVER LIFTER | BLUETOOTH STEREO | *WIFI

*PRO LUXURY / PRO PREMIUM model only.

Product specifications are subject to change without notice to improve reliability, function, design or otherwise.

STRUCTURE

Weatherproof Cabinet

Exterior wood-effect cabinet.

UV resistant, weatherproof and maintenance.

The Thickest Shell On The Market

8-10mm thick fiberglass shell with American acrylic surface.

Multi layers laminated constructiion for strength and rigidity.

Oven cured for maximum strength.

The Strongest Frame On The Market

Super strong triple reinforced frame.

Built tough – our Spas are up to 50% heavier than other brands.

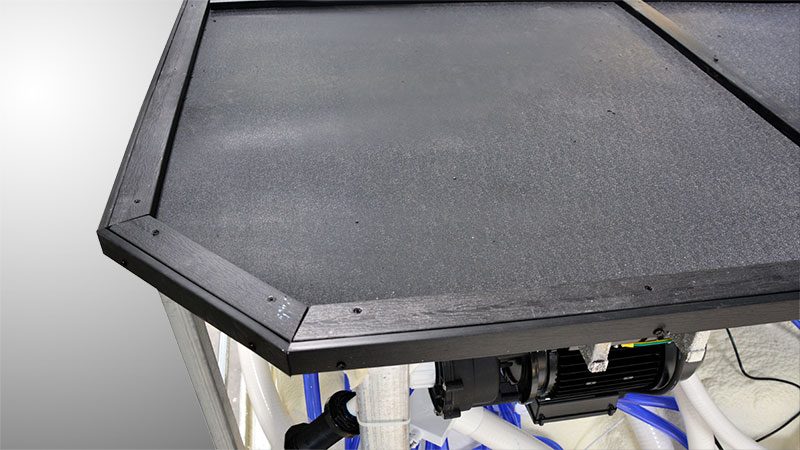

Base

Weatherproof plastic base

Solid wrap-around plastic base on the bottom of your spa adds massive strength to the spa overall.

This base allows us to insulate the spa at

ground level to stop heat loss through the base.

HUMAN-CENTERED DESIGN

Smart Power Saver Controller

Gecko controllers use state of the art technology to manage power use and reduce overall running costs.

Gecko system will help you set up your ideal filtration and heating setting. Depending on your needs, choose or set one of the suggested modes to improve energy efficiency.

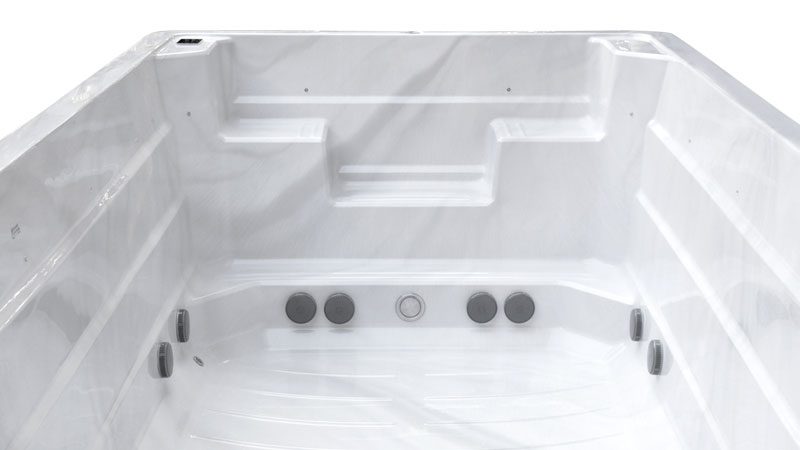

Step design

Step Design

Concise step design makes larger swimming space possible.

Help you to step in and out.

Your safety is our priority.

Swim Line

The contrasting swim line provides a point of reference which helps to maintain a central position in the broad swim stream.

The upgraded swimming line made of EVA resin has good flexibility even in low temperatures. Soft and foot protection, aging resistance, ozone resistance, not easy to peel off.

LUXURY HARD COVER

Perfect heat insulation & Energy saving

Manufactured with the highest quality commercial grade materials, providing a strong, durable, lockable safety cover.

 OPTIONAL ACCESSORIES

图层 0

HEAT PUMP

Ready to connect to your pool, this energy efficient alternative can save you up to 75% on heating costs.

Steps

Give your Pool better access with a durable step.Colour matchable 3 tier steps.Designed to be easy to assemble.Lightweight and super-sturdy.

微信图片_20220419173955

IN.STREAM STEREO

Delivering clean, crisp sound expected by music lovers, in.stream features a Class D amplifier technology to enhance your outdoor audio experience.

微信图片_20220419174000

IN.TOUCH WIFI

Unlock remote access with android, iphone, ipod or ipad via wi-fi for full spa control from anywhere.

Cover Shelf

Simply fold the cover in half and slide it out onto the sturdy arms and roll it along on the integrated wheels, pull your pool a cover on and off as needed with ease.

Aquatic Sports Equipments

Creat your effective aquatic fitness routine. Get healthy in the convenience and privacy of your own backyard.
