Atlantis 6.0 Hydro Pool
ACRYLIC COLOURS

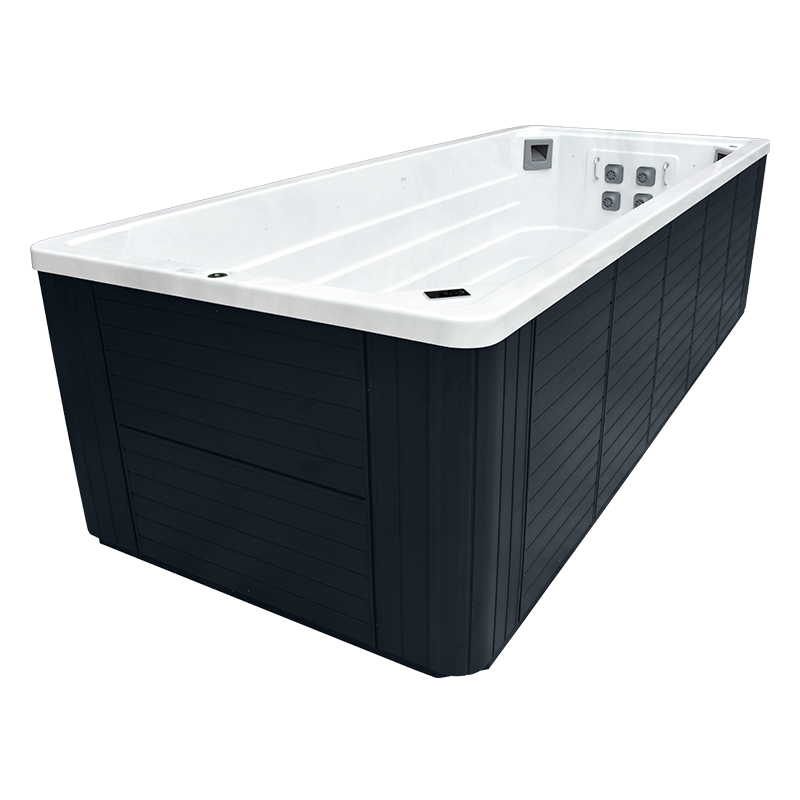

Atlantis 6.0 Hydro Pool Product Details
Our exercise pools are perfect for swimming, water workouts, rehabilitating, or just relaxing and having fun – all year round. Get healthy in the convenience and privacy of your own backyard.
- Dimensions: 5,900 x 2,350 x 1,540 MM
- Empty weight: 1,240 KG
- Filled Weight: 12,260 KG
- Water Capacity: 11,020 L
- Power Supply: 220V~240V – 50 Hz: 22 amp; / 380V – 50 Hz: 15 amp
Image may show optional extras
Extra Deep Design
Patented Turbo Swim Jets
Skirt Lock Insulation Power Saving System
Water Care System
TECHNICAL SPECIFICATIONS
BASIC INFORMATION | 6.0M PLUNGE | 6.0M HYDRO | 6.0M PRO LUXURY | 6.0M PRO PREMIUM |
DIMENSION(MM) | 5,900 x 2,350 x 1,540 | 5,900 x 2,350 x 1,540 | 5,900 x 2,350 x 1,540 | 5,900 x 2,350 x 1,540 |
EMPTY WEIGHT(KG) | 1180 | 1,240 | 1270 | 1280 |
WATER CAPACITY(L) | 11,020 | 11,020 | 11,020 | 11,020 |
FRAME | Galvanized steel frame | Galvanized Steel Frame | Galvanized Steel Frame | Galvanized steel frame |
BASE | Weatherproof plastic base | Weatherproof plastic base | Weatherproof plastic base | Weatherproof plastic base |
CABINET | PS Cabinet/ Metal Corner | PS Cabinet/ Metal Corner | PS Cabinet/ Metal Corner | PS Cabinet/ Metal Corner |
PUMPS | ||||
SWIM JET PUMPS | - | 2 x 3hp | 3 x 3hp | 2 x 3.5hp (variable speed) |
FILTRATION PUMP | 1 x 1hp | 1 x 1hp | 1 x 1hp | 1 x 1hp |
JETS | ||||
TURBO SWIM JETS | – | 2 | 4 | 4 |
FILTRATION & SANITISATION | ||||
FILTRATION | 100sqft | 100sqft | 100sqft | 100sqft |
SANITISATION | High-efficient mixed ozone sterilisation | High-efficient mixed ozone sterilisation | High-efficient mixed ozone sterilisation | High-efficient mixed ozone sterilisation |
CONTROLS | ||||
CONTROLLER | Spa Tech C-III(200)+MP30 | Spa Tech C-III(200)+MP30 | Gecko IN.YE3 (extension connector)+IN.K1001 | Gecko IN.YE3+IN.K806 |
HEATER | 3KW Stainless steel | 3KW Stainless steel | 3KW Stainless steel | 3KW Stainless steel |
FEATURES | ||||
INSULATION | Skirt Lock Insulation | Skirt Lock Insulation | Overall Thermal Lock | Overall Thermal Lock |
LIGHTING | Perimeter LED | Perimeter LED | Perimeter LED | Perimeter LED |
BACK-LIT CONTROLS | – | Included | Included | Included |
LOCKABLE HARDCOVER | Included | Included | Included | Included |
HAND RAIL | Included | Included | Included | Included |
POWER SUPPLY | 220V ~ 240V – 50 Hz: | 220V~240V – 50 Hz: | 220V~240V – 50 Hz: | 220V~240V – 50 Hz: |
OPTIONAL EXRTAS | ||||
FULL INSULATION | STEPS | HEAT PUMP CONNECTION | SWIM POLE | COVER LIFTER | BLUETOOTH STEREO | *WIFI *PRO LUXURY / PRO PREMIUM model only. Product specifications are subject to change without notice to improve reliability, function, design or otherwise. | ||||
STRUCTURE
Weatherproof Cabinet
Exterior wood-effect cabinet.
UV resistant, weatherproof and maintenance.
The Thickest Shell On The Market
8-10mm thick fiberglass shell with American acrylic surface.
Multi layers laminated constructiion for strength and rigidity.
Oven cured for maximum strength.
The Strongest Frame On The Market
Super strong triple reinforced frame.
Built tough – our Spas are up to 50% heavier than other brands.
Weatherproof plastic base
Solid wrap-around plastic base on the bottom of your spa adds massive strength to the spa overall.
This base allows us to insulate the spa at
ground level to stop heat loss through the base.
HUMAN-CENTERED DESIGN
Smart Power Saver Controller
Gecko controllers use state of the art technology to manage power use and reduce overall running costs.
Gecko system will help you set up your ideal filtration and heating setting. Depending on your needs, choose or set one of the suggested modes to improve energy efficiency.
Step Design
Concise step design makes larger swimming space possible.
Help you to step in and out.
Your safety is our priority.
Swim Line
The contrasting swim line provides a point of reference which helps to maintain a central position in the broad swim stream.
The upgraded swimming line made of EVA resin has good flexibility even in low temperatures. Soft and foot protection, aging resistance, ozone resistance, not easy to peel off.
LUXURY HARD COVER
Perfect heat insulation & Energy saving
Manufactured with the highest quality commercial grade materials, providing a strong, durable, lockable safety cover.
OPTIONAL ACCESSORIES
HEAT PUMP
Ready to connect to your pool, this energy efficient alternative can save you up to 75% on heating costs.
Steps
Give your Pool better access with a durable step.Colour matchable 3 tier steps.Designed to be easy to assemble.Lightweight and super-sturdy.
IN.STREAM STEREO
Delivering clean, crisp sound expected by music lovers, in.stream features a Class D amplifier technology to enhance your outdoor audio experience.
IN.TOUCH WIFI
Unlock remote access with android, iphone, ipod or ipad via wi-fi for full spa control from anywhere.
Cover Shelf
Simply fold the cover in half and slide it out onto the sturdy arms and roll it along on the integrated wheels, pull your pool a cover on and off as needed with ease.
Aquatic Sports Equipments
Creat your effective aquatic fitness routine. Get healthy in the convenience and privacy of your own backyard.
